Powder Coated Low Carbon Steel Metal Wire Mesh Fencing with 50x50mm Mesh Opening for Workshop Isolation

مكان المنشأ خبي، الصين
اسم العلامة التجارية LaiDi
إصدار الشهادات ISO9001
رقم الموديل W089
الحد الأدنى لكمية 100 قطعة
الأسعار $5-$200
تفاصيل التغليف البليت
وقت التسليم 15 يوما
شروط الدفع الاعتماد المستندي، تي/تي
القدرة على العرض 2000 متر في اليوم
تفاصيل المنتج
مادة فولاذ منخفض الكربون لون أصفر
اسم المنتج المستودع السياج الصلب اسم العلامة التجارية LaiDi
أسلوب صناعي ارتفاع 1-2.5 م
طول 2-3 م سلك 4 ملم
افتتاح شبكة 50 × 50 ملم بريد آخر مربع
التعبئة البليت المعدني الاستخدام ورشة أو مستودع
اترك رسالة
منتوج وصف
Powder Coated Robot Boundary Wall Metal Wire Mesh Fencing Of Workshop Isolation Net

The workshop fence is widely used in workshop warehouses or between market stalls to prevent damage. This utility model offers advantages including small floor area, increased effective space, strong light transmission, and high safety. The coating is uniform and plump with soft, bright colors, providing excellent insulation, weather resistance, and durability. It requires no maintenance and offers strong decorative appeal with reliable protection.

Technical Specifications
Fence Height (cm) Panel Width Wire Diameter Mesh Size (mm) Folds No. Post Style Post Size (mm) Post Length (cm)
103 200cm, 225cm, 250cm 3.5mm, 4.0mm, 4.5mm, 5.0mm, 6.0mm, 8.0mm 50×50, 50×100, 50×150, 50×200, 60×120, 75×150 2 Square post 1 40×60×1.5 150
123 2 40×60×1.8 170
150 2/3 40×60×2 197
153 2/3 Square post 2 60×60×1.5 200
170 3 60×60×1.8 217
173 3 60×60×2 220
180 3 60×60×2.5 227
193 3 Peach post 50×70 240
200 3/4 70×100 250
203 3/4 Holland post 48×1.5 250
240 4 290
Surface Treatment
  • Hot-dip Galvanized: Provides electrochemical protection to prevent steel rusting from inside to outside
  • Zinc Phosphate: Enhances the adhesive power of coated film to base steel
  • Epoxy Zinc-rich Powder Coat: Offers excellent antiseptic performance and impact resistance
  • Polyester Color Coat: Provides good wear and UV-stability with long anti-dirty performance and self-cleaning

Color Options: All our fences can be powder coated in a color of your choice.

Application Scenarios
  • Robot Workstation Isolation: Surrounding automated machinery or robotic arms to prevent accidental contact and ensure operator safety
  • Warehouse Logistics Sorting Areas: Dividing storage zones for efficient material handling and segregating high-traffic areas from restricted zones
  • Production Line Segmentation: Separating assembly lines or hazardous equipment areas to streamline workflows and comply with safety regulations

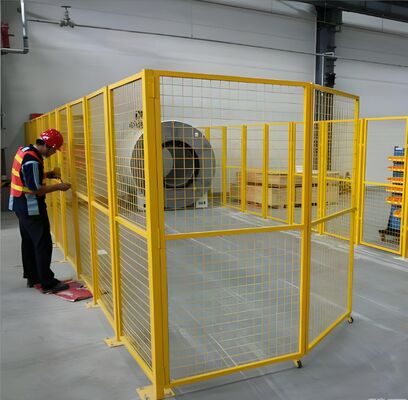

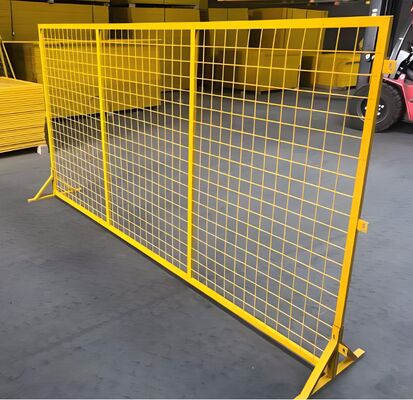

Powder Coated Low Carbon Steel Metal Wire Mesh Fencing with 50x50mm Mesh Opening for Workshop Isolation 0 Powder Coated Low Carbon Steel Metal Wire Mesh Fencing with 50x50mm Mesh Opening for Workshop Isolation 1
Product Advantages
  • Different from woven wire mesh fences - line welding processing provides more firm structure and longer service life
  • Hot dipped zinc coated welded wire fence offers thicker zinc plating than electro galvanized with stronger zinc plating adhesion
  • PVC coated welded wire fence has more colors available than galvanized welded fences
  • Multiple surface treatment options: electro galvanized, hot-dipped galvanized, PVC coated
Usage Applications
  • Security for construction sites and private property
  • Security for residential housing sites and schools
  • For major public events, sports, concerts, festivals, gatherings
  • Mainly used as isolation fences or safety fences for roads, railway
  • For traffic control and crowd control
Packing Method

Packaged in Metal Pallet

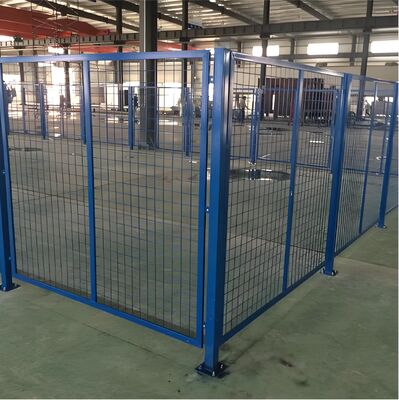

Powder Coated Low Carbon Steel Metal Wire Mesh Fencing with 50x50mm Mesh Opening for Workshop Isolation 2
